Shotmeter:
The production-friendly shot peening sensor
The Shotmeter is an easy-to-use in-line shot peening sensor for measuring in-flight particle velocity. It monitors daily equipment status, quality control, process development and set-up transfer.
Talk to an expertMonitor your shot peening process
Control your velocity to control your intensity
Make shot peening diagnostics accessible and time efficient with the Shotmeter. This reliable, affordable sensor is designed for all shot peening shops to control their velocity and achieve repeatable peening intensity.
In-flight particle velocity
Signal quality
Relative feed rate
The Shotmeter advantage
Easily achieve targeted intensity
Shot peening processes are sensitive to intensity, which is directly correlated with media velocity. Achieving repeatable velocity is the key to maximizing consistency. Monitoring real-time in-flight velocity can help production managers monitor and attain:
- Proper equipment calibration
- Controller process parameters
- Data files and traceability
The most accurate in the industry
Velocity measurements are factory calibrated using a NIST traceable calibration bench to recreate actual conditions in the field.
Save time
- Quicker peening parameter development and process optimization
- Easy cell-to-cell parameter transfer and replication
- Quicker equipment qualification for new hardware
- Direct correlation between velocity and Almen strip deflection
Software features

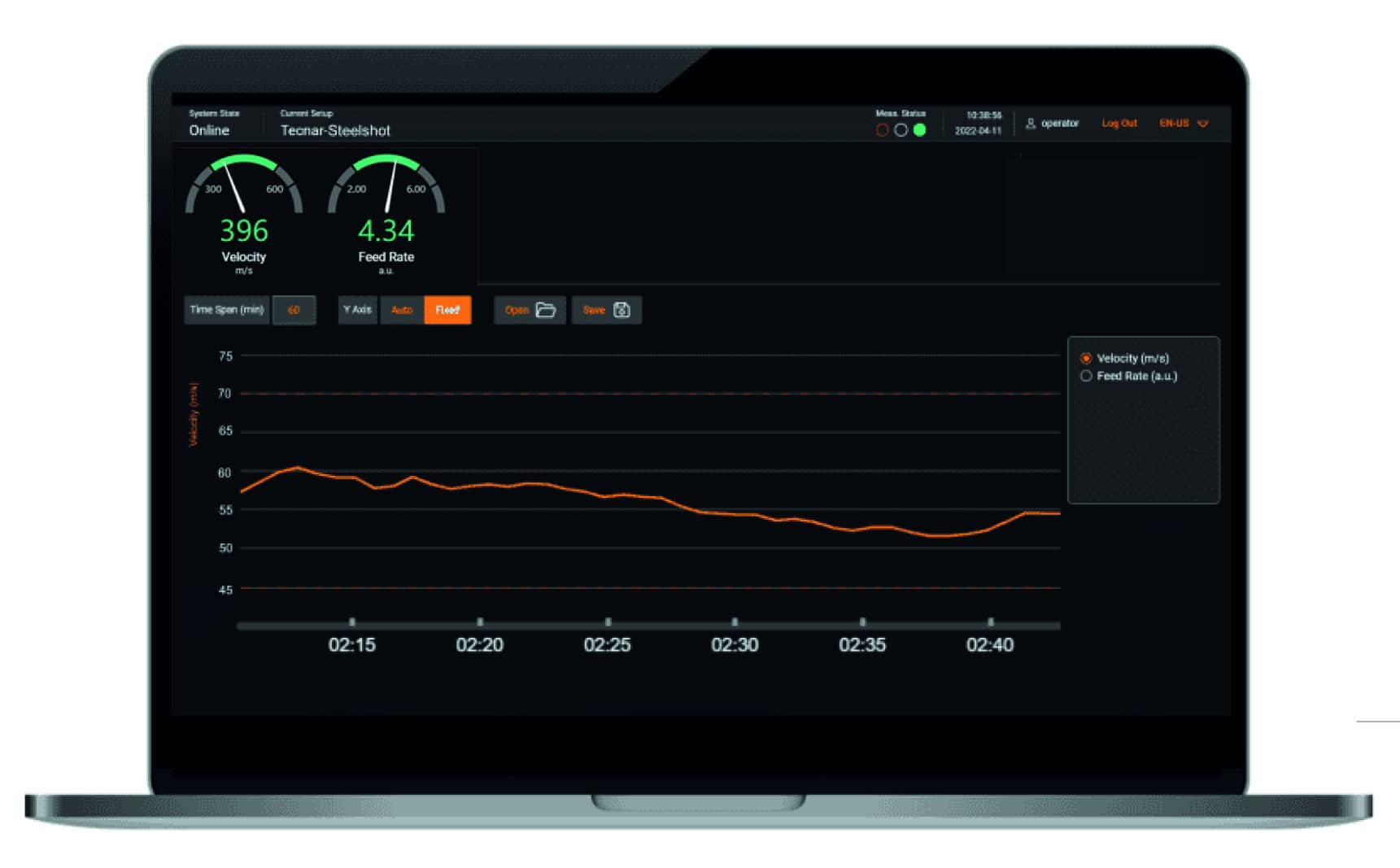

Strip chart displays
Visualizes the evolution of velocity over time on an intuitive strip chart display.
Production reports
Generates production reports with one click in the user interface.
Set-up files
Saves and recalls important set-up parameters according to the conditions.
Technical specifications - Shotmeter
Measurements
Particle velocity range
5 m/s to 200 m/s at 2% precision
16 f/s to 656 f/s at 2% precision
Measurement volume information
Velocity measurement area
⌀3.4 mm = 9 mm²
⌀0.13 in. = 0.05 in.²
Working distance
200 mm
7.87 in.
Plant supplies
Power requirements
100-120 or 200-230 VAC, 50-60 Hz Auto-switch
Air supply
Supply clean & dry cooling air at 1.7–2.7 bar to the sensor head
Supply clean & dry cooling air at 25–40 psi to the sensor head
Dimensions
Sensor head
105 mm x 65 mm x 185 mm - 1.6 kg
4.1 in. x 2.6 in. x 7.3 in. - 3.5 lbs
Controller
300 mm x 127 mm x 300 mm
11.8 in. x 5 in. x 11.8 in.
Total weight
12.7 kg
28 lbs
Shipping specifications
Total dimentions
570 mm x 380 mm x 260 mm
22.4 in. x 15 in. x 10.2 in.
Total weight
12.7 kg
28 lbs
